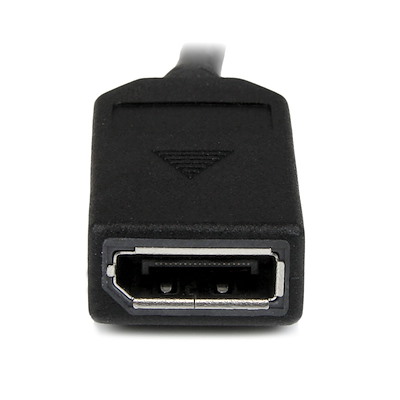

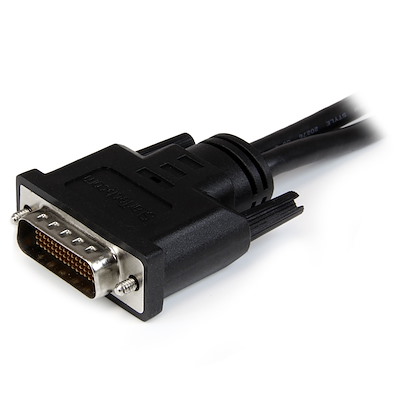

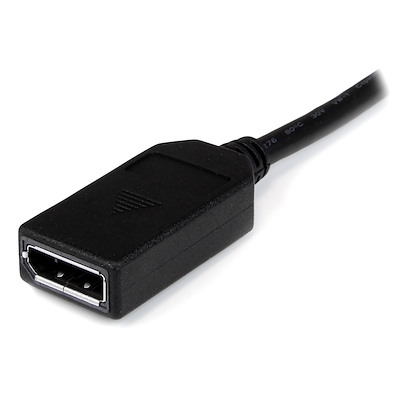

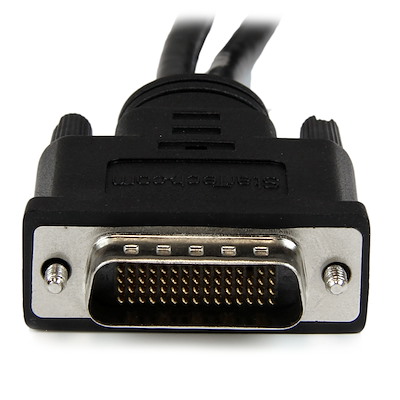

StarTech.com DMS-59 to DisplayPort – 8in – DMS 59 to 2x DP – Y Cable – DMS-59 Adapter – DisplayPort Splitter Cable – LFH Cable (DMSDPDP1),Black

DMSDPDP1 2
DMSDPDP1 3
DMSDPDP1 4
DMSDPDP1 5
(0 customer review)
Brand StarTech.com
Connector Type 1 – Dms-59 (59 Pin) Male to 2 – Displayport (20 Pin) Latching Female
Compatible Devices Monitor
Recommended Uses For Product transferring data
Color Black

Availability: In Stock

SKU:DMSDPDP1Category:
  • DMS-59 TO DUAL DISPLAYPORT ADAPTER CABLE: This 7.8 in (20 cm) DMS-59 P to 2x DP v1.2 extension cable (male to 2x female connectors) supports 4K x 2K video (3840 x 2160 60Hz), 1920 x 1200p, Full HD 1080p, 21.6 Gbps bandwidth, HBR2
  • RELIABLE DESIGN: Durable and flexible molded PVC strain relief and jacket prevent fraying or damage due to bending or rough usage; Cost-effective replacement for damaged or misplaced DMS-59 to dual DisplayPort splitter y cables
  • QUALITY CONSTRUCTION: 32AWG wire and EMI shielding with Aluminium foil and Braid provide superior signal integrity and reliability for higher quality video and audio; Use this DMS-59 to DisplayPort cable with DMS/LFH 59 graphics cards
  • APPLICATIONS: Split the video from a LHF graphics card to two DP UHD/4K monitors/projectors/displays w/ this LFH cable; Ideal for home/office/classroom works w/ professional workstations with ATI Radeon X1300, NVIDIA Quadro NVS 440, Matrox Xenia, HP, PNY
  • SPECS: 7.8 inch (20 cm) | Black | Dual Monitor Solution (DMS), 59 pins | Male DMS 59P Plug to 2x Standard DP Female adapter cable | 32 AWG, 0.2″(5.5mm) Outer Diameter | PVC cable jacket | EMI Shield: Aluminium foil with Braid
The DMSDPDP1 DMS-59 to Dual DisplayPort Cable allows you to split the video from a single LHF graphics card on to two DisplayPort (DP) monitors.

The DMS to DP Y cable supports high resolutions of up to 4k x 2k (3840 x 2160) with a maximum HBR2 bandwidth of 21.6 Gbps and is compatible with DMS / LFH 59 or DMS / LFH 60 graphics cards such as Matrox, NVIDIA®, PNY, ATI and HP.

Backed by our Lifetime Warranty, the DMSDPDP1 is designed and constructed for maximum durability – making it a reliable and cost-effective replacement for damaged or misplaced DMS to 2x DisplayPort cables.

Applications

  • Connect two DisplayPort monitors to a single DMS / LFH 59 or DMS / LFH 60 graphics card port
Weight 0.079 kg
Dimensions 20.3 × 4.1 × 1.5 cm
